Item specifics
  • Model Number: FU-01A
  • Place of Origin: China (Mainland)
  • is_customized: Yes
Product Description

New! FMUSER SDA-01A 1W FM PLL radio broadcast transmitter PC control stereo/mono 76 to 108mhz power adjustable from 0 to 1w



1 Watt Professional Transmitter FM Radio Station
Power adjustable from 0.1W to 1.2W

PC Control Function

23


Technical parameters
1 Power Supply DC12V
2 Current <0.5A
3 76 ~ 108MHz frequency range
4 Frequency stability  more or less 10PPM
Step 5 Frequency 100KHz
6 Environmental Operating temperature -10   ~ 50
7 Output impedance 50?
8 RF output power range 0W ~ 1W
9 harmonics, spurious radiation ?-50dB
10 Audio Distortion ? 0.3%
11 Frequency Response 50Hz ~ 15000Hz
12 separation ? 40 dB
13 input level ? -15 dBV
14 frequency deviation more or less75KHZ
15 SNR ? 60 dB
16 Dimension 140 mm (L) * 105 mm (W) * 43 mm (H)
(Excluding protrusions)
Weight about 550 grams 17

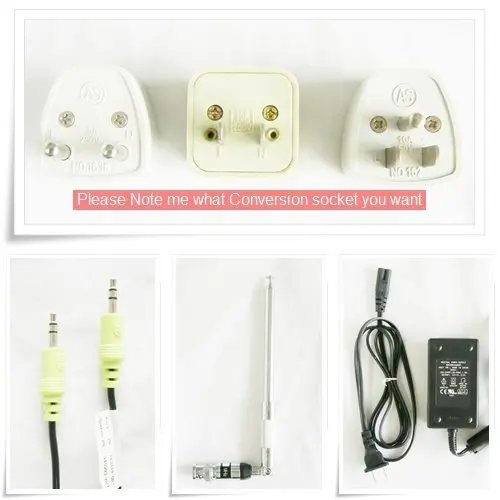

Package include :
1 * SDA-01A PC Control FM transmitter
1 * TNC short mini rubber antenna
1 * Power Adapter
1 * Audio Cable

New! FMUSER Black SDA-01A 1W FM PLL radio broadcast transmitter PC Control+antenna+power supply kit 0~1w power adjustable New! FMUSER Black SDA-01A 1W FM PLL radio broadcast transmitter PC Control+antenna+power supply kit 0~1w power adjustable
New! FMUSER Black SDA-01A 1W FM PLL radio broadcast transmitter PC Control+antenna+power supply kit 0~1w power adjustable

Packaging Details
  • Unit Type: piece
  • Package Weight: 1.0kg (2.20lb.)
  • Package Size: 10cm x 10cm x 10cm (3.94in x 3.94in x 3.94in)
Shipping
Calculate your shipping cost by country/region and quantity.
Quantity: Ship to:
Packaging Details
  • Unit Type: piece
  • Package Weight: 1.0kg (2.20lb.)
  • Package Size: 10cm x 10cm x 10cm (3.94in x 3.94in x 3.94in)
