Item specifics
  • Model Number: SV610
  • Brand Name: G-NiceRF
  • Voltage: 2.8 ~ 6.0 V
  • Temperature: -40 ~ +85 °C
  • frequency: 433/470/868/915 MHz (Customizable 240-930 MHZ)
  • Interface: : TTL
  • 40 channels : 40
  • node ID: 2 bytes
  • net ID: 4 bytes
  • Modulation: GFSK
  • Max output power: 100 mW
  • Sensitivity: : -121 dBm
Product Description

2pcs/lot SV610 100mW TTL interface 1400m Long distance 433MHz Wireless RF Module with Antennas



Description:
SV610 is an Industrial class& highly-integrated RF transceiver module,which adopts the high performance Si4432 from Silicon Labs and industrial micro-controller.SV610 has a standard TTL interface,SV610 has good sensitivity and 100mW output power to achieve long RF range and reliable RF communication.To avoid the interference,SV610 provides 40 frequency channels and configurable Net ID.SV610 is flexible but easy to use,it comes with many parameters,such as: frequency,data rate,output power,Net ID,Node ID.Users can configure the parameters through PC or customer\'s own device.


Feature:
  • 1400 meters transmission distance @ 2.4K rate when
  • Working frequency options:433/470/868/915 MHz
  • 40 channels
  • 4 bytes network ID
  • 2 bytes node ID
  • Multiple data transfer rate
  • RSSI output field strength
  • GFSK modulation mode
  • automatically antenna matching and bi-directional switch control
  • Support Serial port parameter setting
  • sensitivity up to -121 dBm
  • Maximum output power: 100 mW
  • Operating Voltage 3.3 ~ 7.0V


Application:
  • Remote telemetry
  • Auto meter reading
  • Security Systems
  • Data logger
  • home automation telemetry
  • personal data records
  • wireless data communications
  • building automation and security
  • Healthy Monitoring
  • wireless PC peripherals
  • Access Control System
  • Robot control

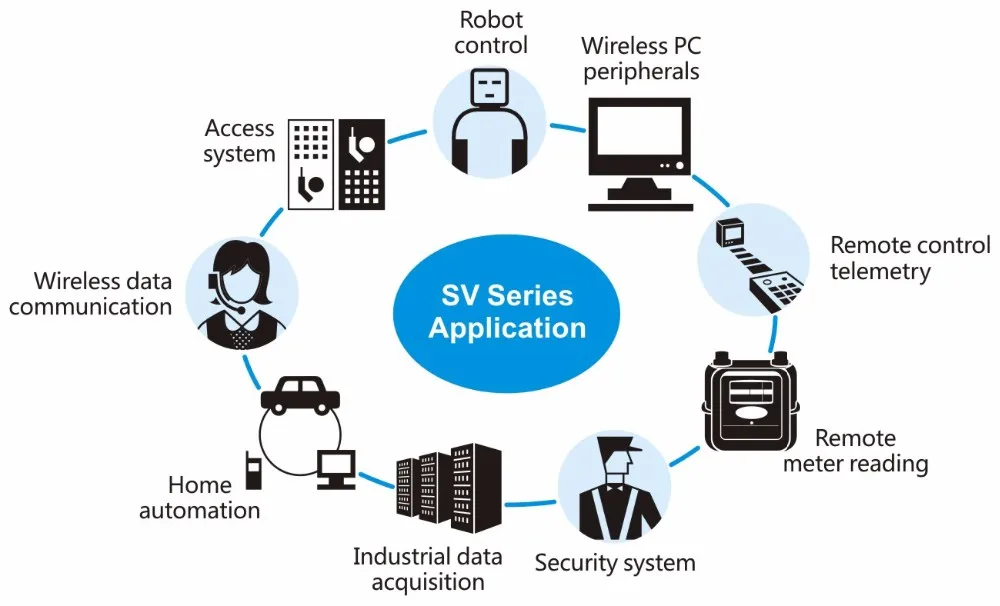

SV Series Application

Product Picture:

SV610-SW433-TH32 SV610-SW433-TH32-2



Package include:
2pcs SV610 TTL 433MHz modules
2pcs Spring Antennas

Parameter:
5

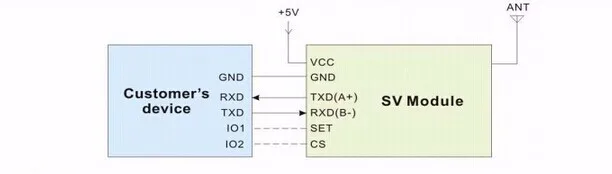

Application circuit :
The typical schematic circuit is as below:Note:The ground pin of the module and device should be connected together,


Application circuit



Q





Pinout:



7



Mechanical dimension



Mechanical dimension





Accessories:

Antenna: It is an important part of communication system. Its performance directly affect the indicators of   communication system.This module SV610 requires the  antenna impedance as 50 ohm. To make the module in the best working status, we recommend that users use our company\'s standard antenna!



8



USB Converter Board: Modules need to match relevant parameter,transmit data...etc, with PC.(you can choose configuration mode by wire jumper). We have the matching USB connector and TTL level switch board for users to conveniently communicate with PC.

                  9
