Item specifics
  • Model Number: RS40 RS-40
  • Dimensions: 70W x 78 H x 30D mm
  • Model Number: RS40 RS-40
  • color : black
  • Name: Nissei
Product Description

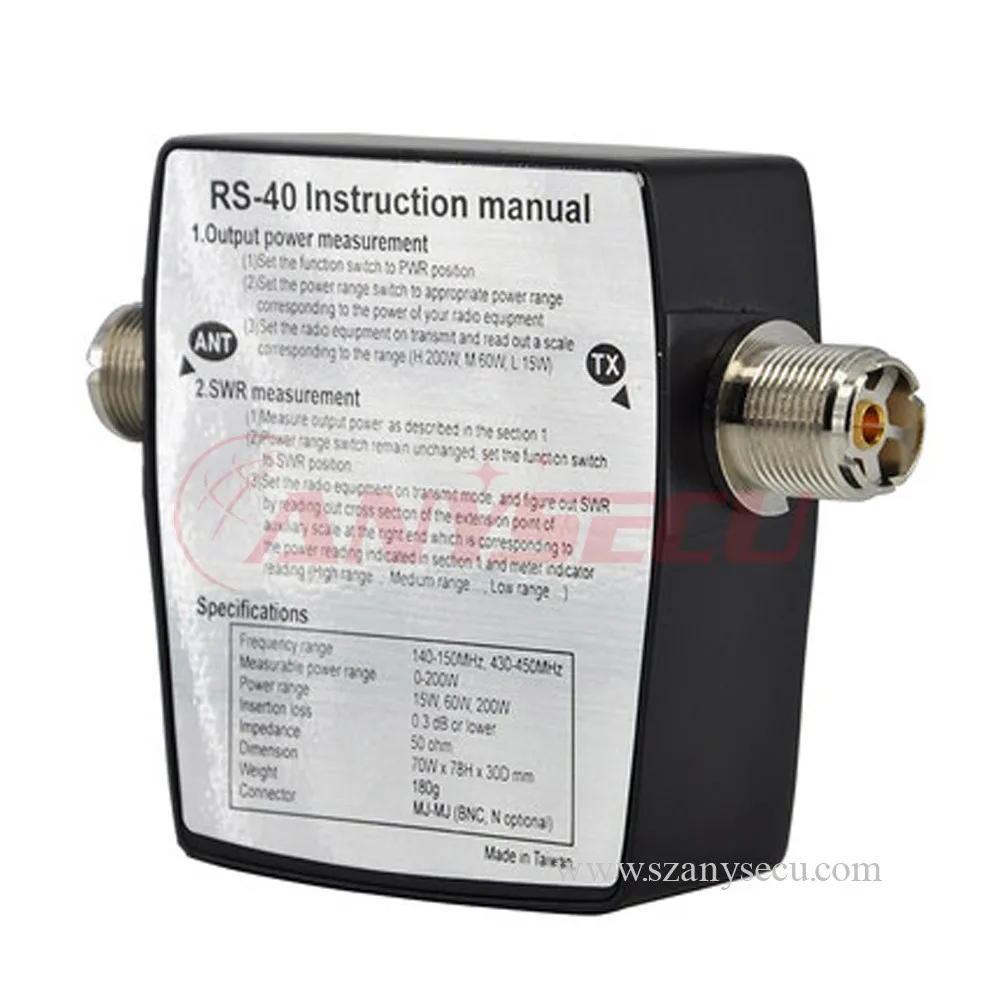

Brand New Genuine Original NISSEI RS-40 Measurable Range 200w,with Adapter Connector, RS40 Power SWR Meter,replacing redot 1050A



NISSEI RS-40 SWR/POWER meters are of the highest quality. Measurement accuracy is between +/- 5 to 10% depending on model. Insertion loss is typically less than 0.3 dB or lower.

This SWR/Watt meter is a campact size for measuring Forward Power, and VSWR.

RS-40 SWR & Power Meter can read out directly without any calibration.Low insertion loss structure allows it to be connected permanently.

RS-40 (1) RS-40 (3) RS-40 (2)

Model: RS-40
Frequency Range: 140-150MHz,430-450MHz

Measurable Power Range: 0-200W
Power Scale: 15W,60W,200W
Maximum Power: 200W
Accuracy-10W Range: (AVG) +/- 10%
Accuracy -100/1000W Range: (AVG) +/- 5%
Min.Power(Fwd) Measured:1W
Input/Output Connector: MJ-MJ (BNC,N Optional)
Insertion Loss: 0.3dB or Lower
Testing Function: Forward,SWR
Input/Output Impedance: 50 OHM
Dimension(W/H/D)mm: 70*78*30
Weight(Net): 180g

RS-40 (1)



ANYSECU ALIEXPRESS SERVICE1ANYSECU ALIEXPRESS SERVICE2





Packaging Details
  • Unit Type: piece
  • Package Weight: 0.25kg (0.55lb.)
  • Package Size: 10cm x 12cm x 8cm (3.94in x 4.72in x 3.15in)
