  • Brand Name: G-NiceRF
  • Model Number: SV652
  • frequency: 433/470/868/915 MHz
  • Interface: TTL/RS232/RS485
  • channels: 40
  • net ID: 4 bytes
  • node ID: 2 bytes
  • modulation: GFSK
  • Sensitivity: -121 dBm
  • Max output power: 500mW
  • Temperature: -40 ~ +85 'C
  • Quantity in package: 2pcs
Product Description
2sets 500mW 3km distance radio modem SV652 rs232 wireless data transceiver modules



Descriptions:
SV652 is highly-integrated RF module, which adopts high performance Si4432 from Silicon Labs. It has 3 optional Interfaces (TTL, 232, 485). SV652 has high sensitivity and 500mW output power to achieve long RF range and reliable RF communication. SV652 comes with many parameters which are configurable, such as: frequency, data rate, output power, Net ID, Node ID. Users can configure the parameters through PC or customer’s own device. The features of long distance,wide working voltage and simple parameters configuration make SV652 wildly used in many fields.


Feature:
  • 433/470/868/915 MHz
  • (Customizable240-930 MHZ)
  • Industrial class
  • 40 channels
  • 4 bytes Net ID & 2 bytes Node ID
  • Series Data Rate:1200 ~ 115200 bps
  • Air Data Rate:1200 ~ 115200 bps
  • GFSK modulation
  • RSSI
  • Interface: TTL/RS232/RS485
  • Antenna matching automatically
  • Bi-directional & Half duplex
  • Sensitivity:-121 dBm
  • Max output power:500 mW/+27 dB
  • Working voltage: 2.8 ~ 6.5 V/TTL
  • Working voltage: 4.5 ~ 5.5 V/232 or 4
  • Interface voltage: 3.3V / TTL
  • Working temperature:-40 ~ +85 °C
  • Weight:47 g
  • Parameters save automatically


Application:
  • Remote control telemetry
  • Security system
  • Industrial data acquisition
  • Home automation
  • Wireless data communication
  • Access system
  • Robot control
  • Wireless PC peripherals


Application circuit:
The typical schematic circuit is as below:
Note:The ground pin of the module and device should be connected together

               7. Application circuit


Typical application:
Typical application



Block Diagram:
         4. Block Diagram



Electrical Characteristics:

   Electrical Characteristics


Pin definition:
8. Pin definition


Mechanical dimension:



      10.  Mechanical dimension








Product show:

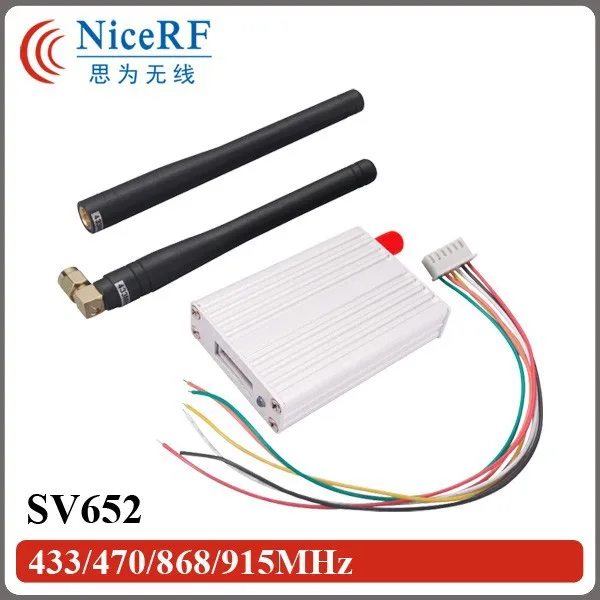

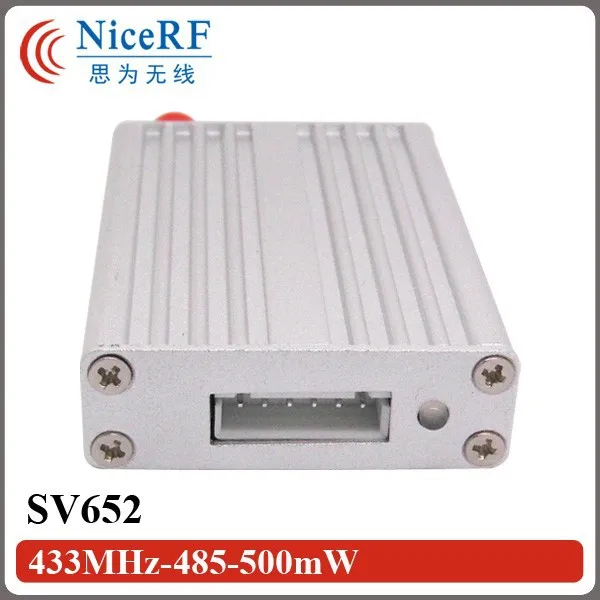

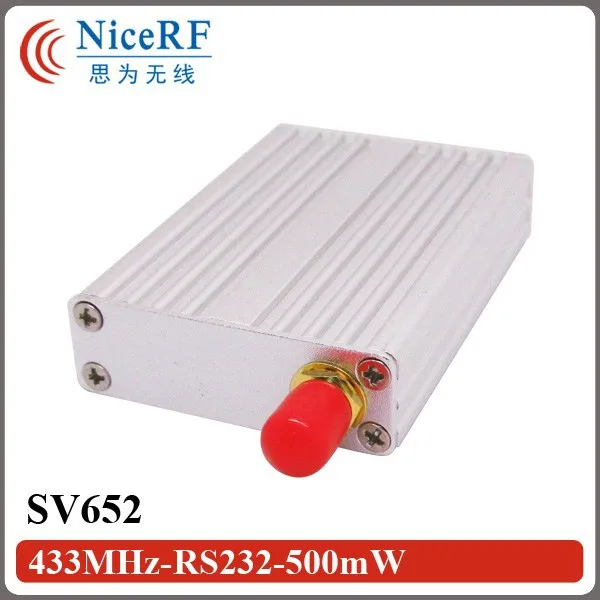

SV652-433 470 868 915MHzSV652-433MHz-485-500mWSV652-433MHz-485-500mW-3SV652-433MHz-RS232-500mW-2


Order List

2pcs SV652 modules
2pcs antennas



Accessories
1)Antenna
The antenna is very important for RF communication,We have many kinds of antenna for customer to choose,please contact the corresponding sales engineer for help.

Tips for antenna:
Don’t close to the ground, metal, magnet, big current:
If you are using the sucker antenna, pull the wire as straight as possible, the sucker foundation should stick with metal



2) USB bridge board
There are 3 type of USB bridge,which is SU108-TTL/SU108-232 /SU108-485.SU108 -TTL is of TTL Interface,SU108-232 is for 232 Interface,SU108 - 485 is for 485 Interface.
User should select  the right USB bridge board corresponding to the RF module.
